LTC1799 Adjustable Oscillator Module 1KHz to 33MHz - Precision Frequency Generator for Electronics Projects, DIY, and Lab Testing
$17.25
$23
Safe 25%
LTC1799 Adjustable Oscillator Module 1KHz to 33MHz - Precision Frequency Generator for Electronics Projects, DIY, and Lab Testing
$17.25
$23
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
9 people viewing this product right now!
SKU: 87742025
Guranteed safe checkout
Description

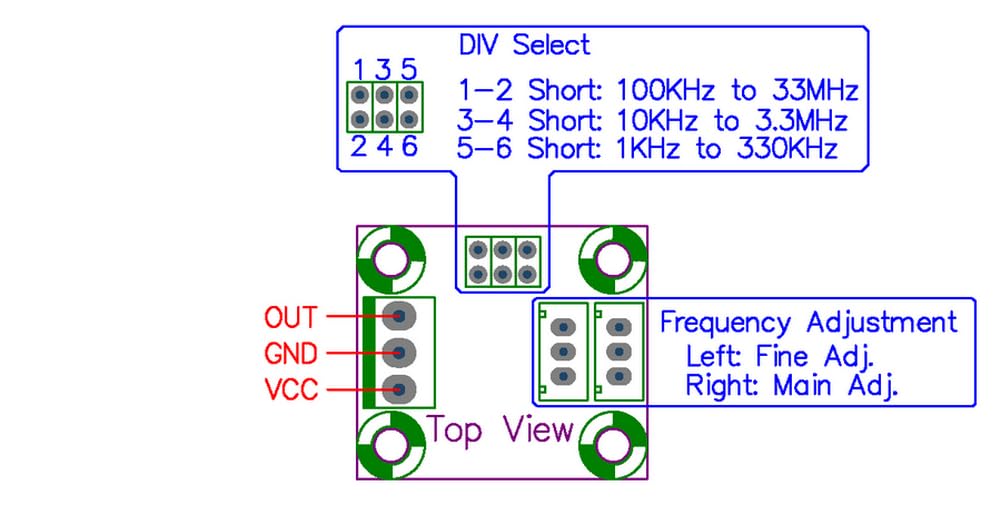

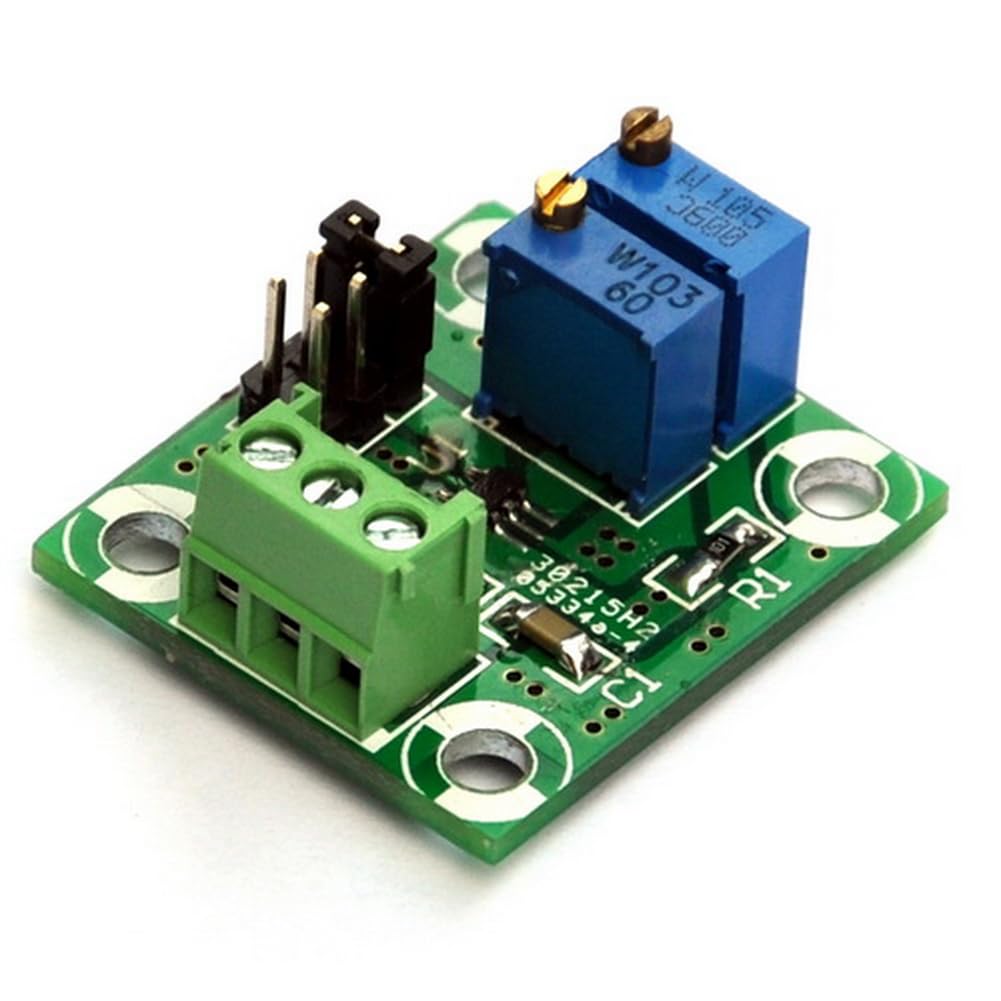

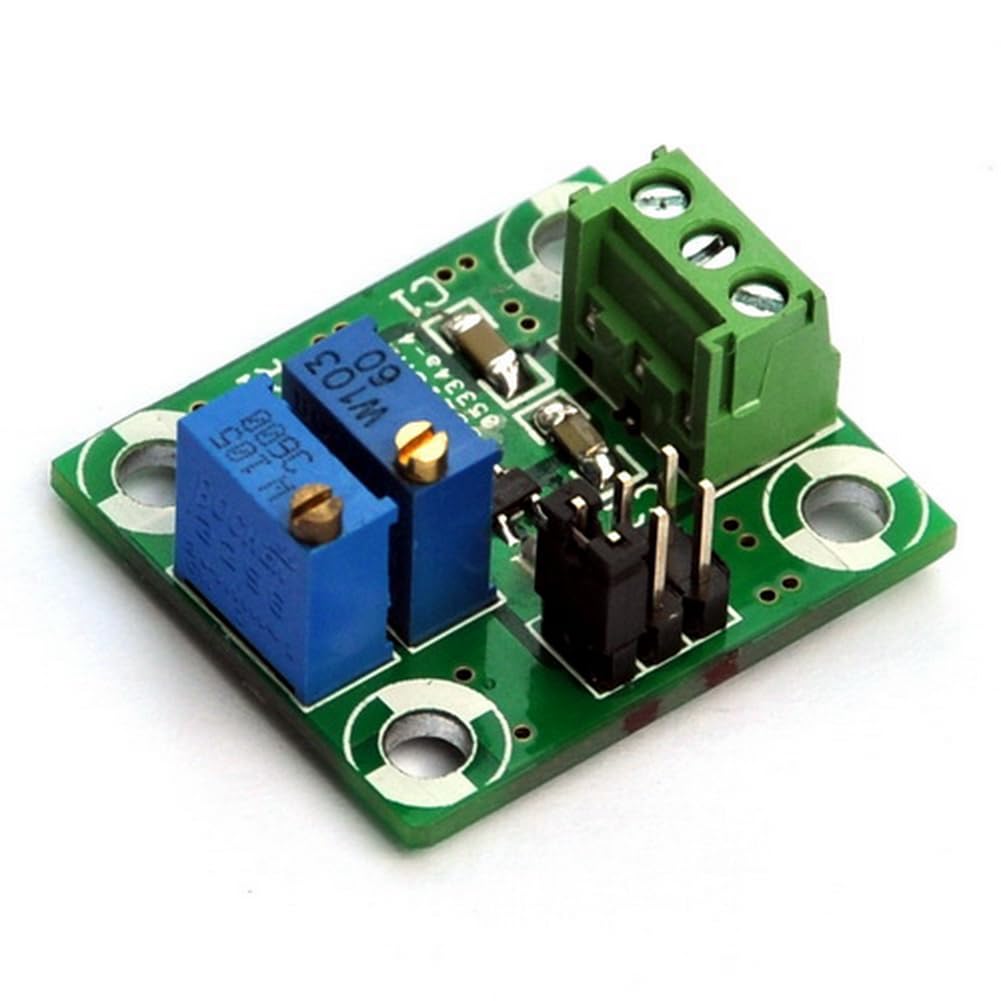

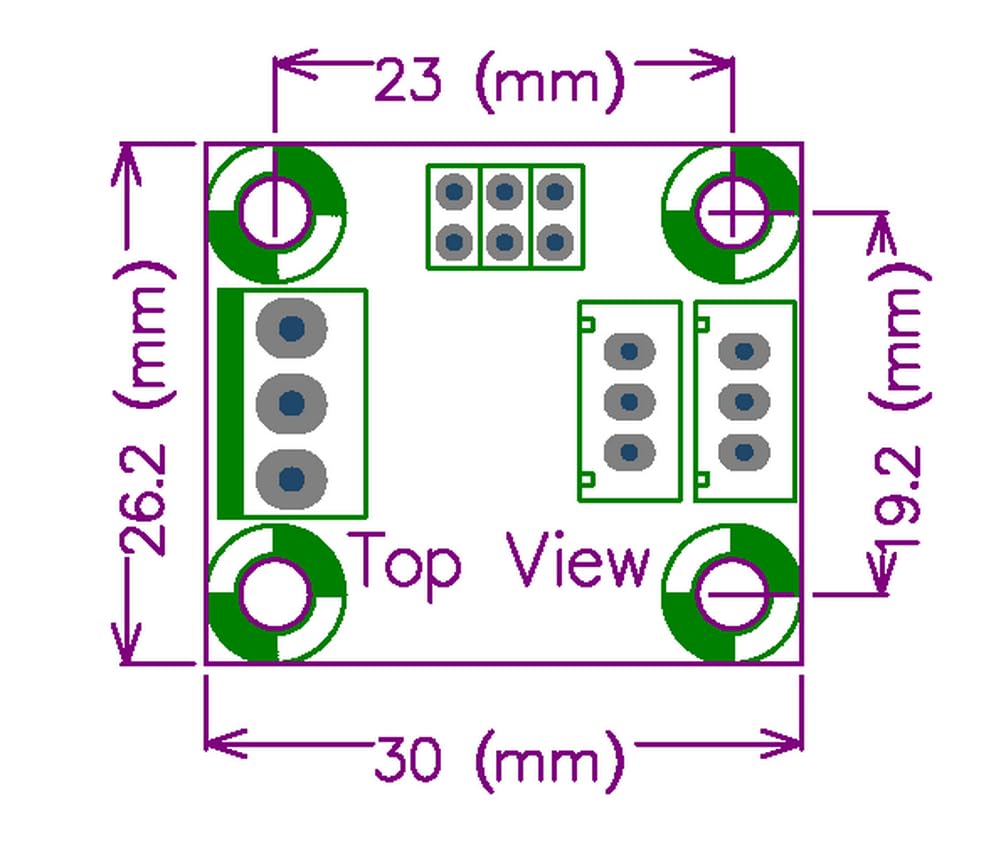

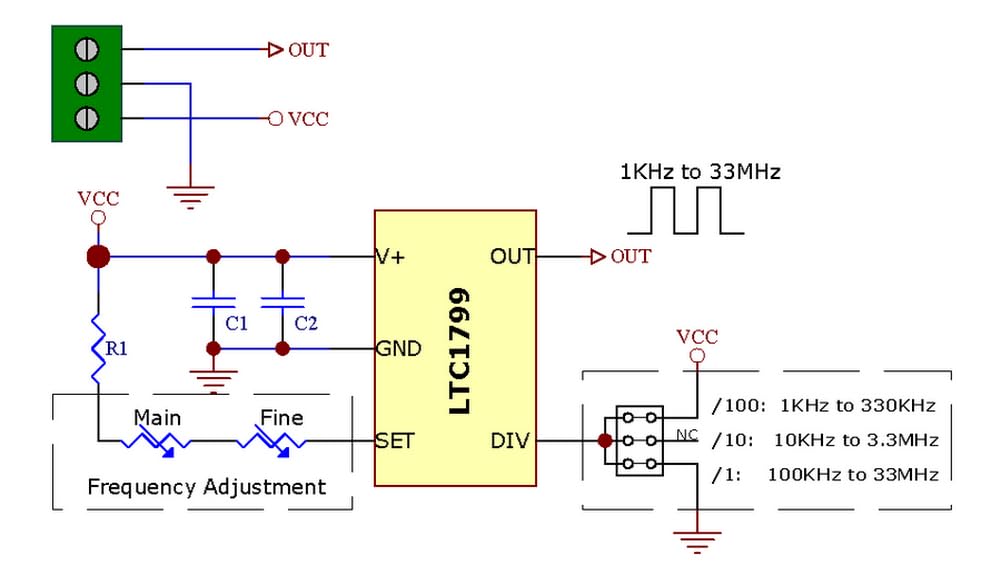

Frequency 1KHz to 33MHz Adjustable Square Wave Oscillator Module. Operating Voltage: 2.7 to 5.5V DC. Operating Current: <5mA. Operating Temp. Range: 0 to 70C. Design based on LTC1799 IC. Two 25 turns precision trimming potentiometer Terminal blocks, easy connection wire. FR-4 fiber glass material PCB (double layer). PCB size : 30 x 26.2 mm Maximum height : 15 mm Fast Start-Up Time: <1ms +/- 40ppm/C Temperature Stability 0.05%/V Supply Stability 50% ±1% Duty Cycle 1kHz to 2MHz 50% ±5% Duty Cycle 2MHz to 20MHz 100 Ohm CMOS Output Driver
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
Great for circuit bending projects.
